2026 UK price guide · Real project configurations

How Much Does a Motorised Pergola Cost in the UK?

Three real FlexPatio project configurations show how size, side protection and installation turn a headline product price into a complete project budget.

Prices checked 1 September 2026 · VAT included

The quick answer

Across the three configurations in this guide, the motorised pergola structure costs £4,006–£10,927. Complete packages shown range from £6,376 to £18,131, depending on size, side protection and installation.

£4k–£18k Real FlexPatio reference configurations, including VAT

Real project prices at a glance

Size matters, but it is not the whole story. The compact glass-enclosed project costs more than the open 3×4m project because side protection forms a much larger part of its budget.

Project	Pergola only	With side protection	Complete package
POWER+ PRO 3×3m	£4,856	£11,708	£13,308
POWER+ 3×4m	£4,006	£5,376	£6,376
POWER+ PRO 4×6m	£10,927	£16,181	£18,131

Pergola-only prices include the motorised louvred structure, integrated LED lighting and delivery to most mainland UK addresses. Groundwork, electrical connection and location-based surcharges are excluded.

For current sizes and specifications, explore the FlexPatio POWER+ motorised pergola.

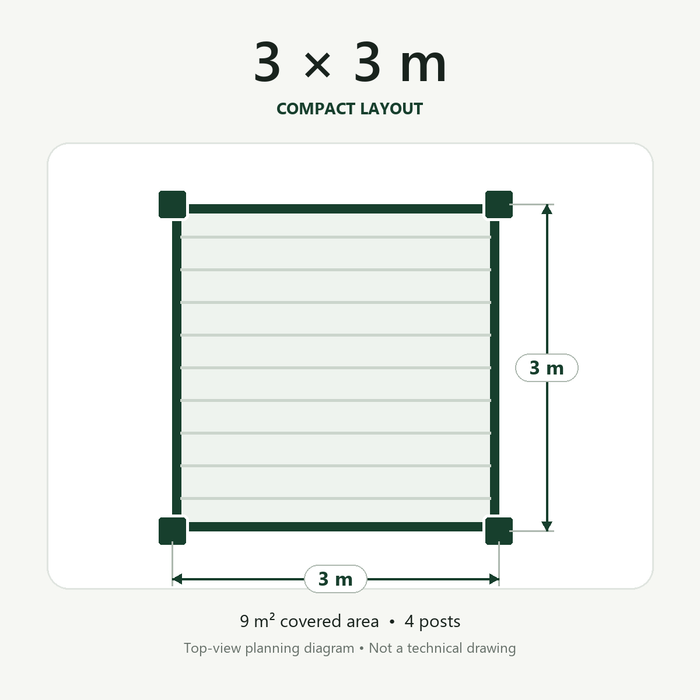

Case 01 · 9m² covered area

POWER+ PRO 3×3m

A compact project designed to create one private, sheltered zone without covering the whole garden.

9m² covered area · compact lounge or spa zone

Motorised pergola project overall garden view

Motorised pergola side protection detail

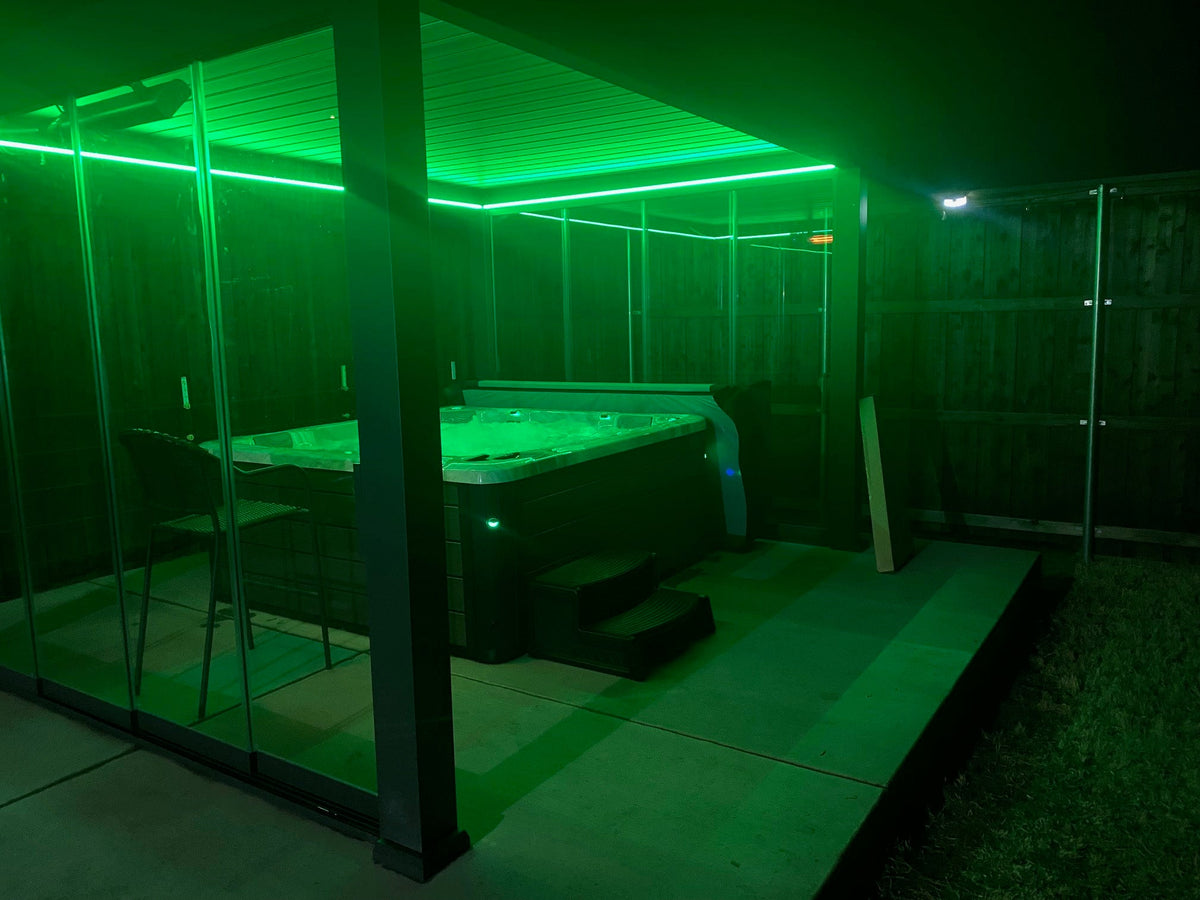

Motorised pergola roof and structure detail

Why this configuration was chosen

The pergola structure established the covered zone, while four sliding glass sides created the brighter, more enclosed atmosphere required for a wellness space.

Side protection added £6,852 to the structure price. Installation of the structure and glass system added £1,600 in this example.

What this project teaches usA small pergola is not automatically a low-cost project. The number and type of side walls can matter more than the floor area.

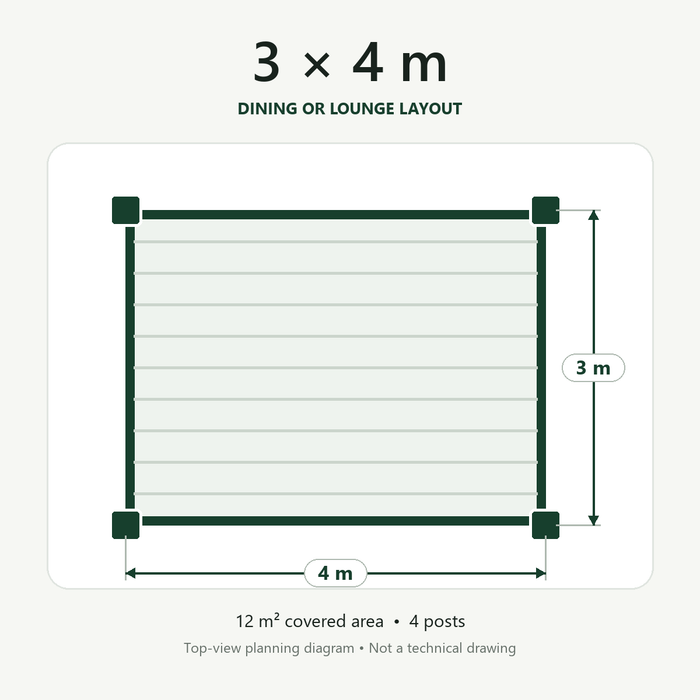

Case 02 · 12m² covered area

POWER+ 3×4m

A dining and lounge area that keeps the wider garden open, with targeted protection on the side where it is useful.

12m² covered area · dining or generous seating

Why this configuration was chosen

Instead of enclosing every elevation, this project addresses the main exposure with one 4m motorised blind.

The blind added £1,370. Professional installation added £1,000 to this particular configuration.

What this project teaches usIdentify the prevailing weather, afternoon sun and neighbouring sightlines before pricing four side walls.

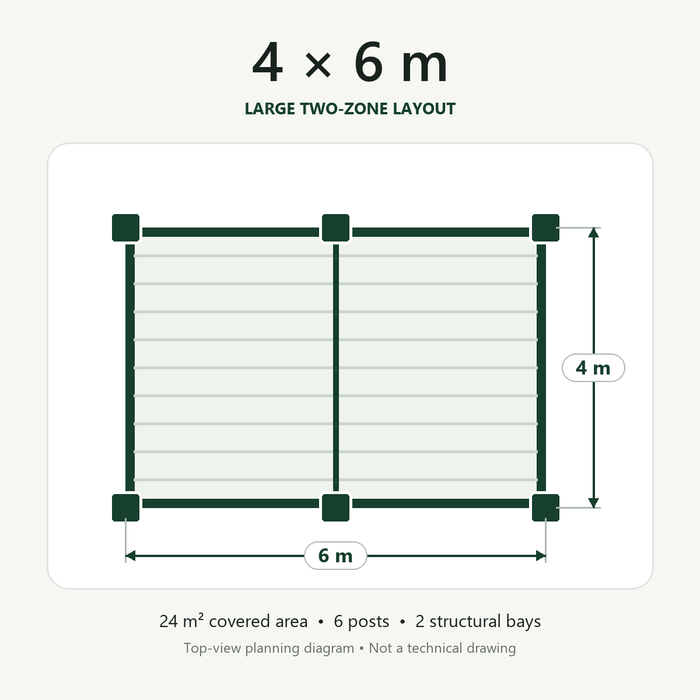

Case 03 · 24m² covered area

POWER+ PRO 4×6m

A six-post structure with space for separate dining and lounge zones, plus privacy where the garden needs it.

24m² covered area · separate dining and lounge zones

Why this configuration was chosen

One 4m and one 6m privacy shutter wall screen key sightlines while retaining light and airflow.

The two shutter walls added £5,254. Installation added £1,950 for the configuration shown.

What this project teaches usDefine the furniture zones before choosing the footprint. A 4×6m layout earns its cost when the garden will use separate dining and lounge areas.

If you are unsure which configuration is closest to your garden, send us your photographs and approximate measurements for a free initial assessment.

Before installation

The surface under the pergola matters

A patio that looks finished is not necessarily a structural base. The installer needs to understand what is beneath the porcelain, paving or decking and whether each post can be anchored safely.

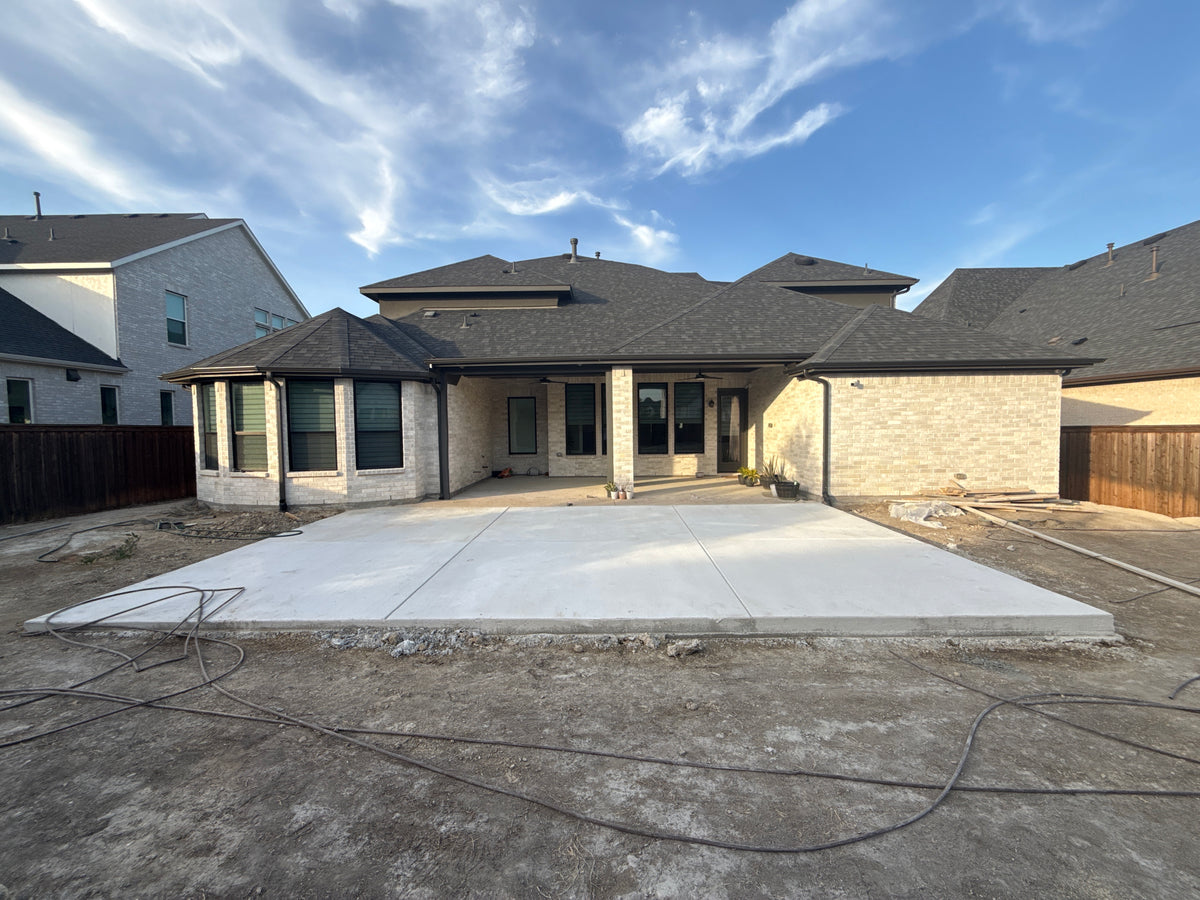

Suitable structural base for a motorised pergola

✓ Suitable base example

Level, load-bearing and ready for the specified fixing

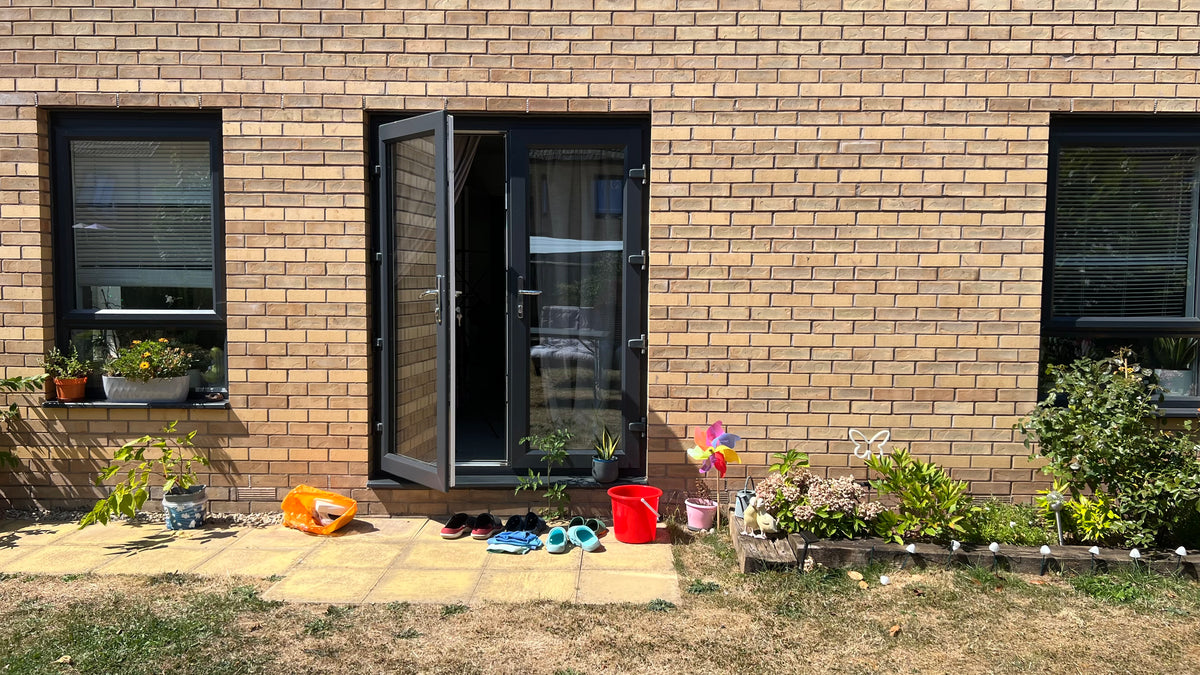

Pergola installation surface requiring further preparation

× Further preparation required

Finished surface without a confirmed structural base

Examples may include grass, loose slabs, unsupported decking or paving where the build-up beneath has not been verified.

What changes the final quotation?

Structure and protection

POWER+ or POWER+ PRO construction
Standard or custom dimensions
Freestanding or wall-mounted layout
Number, length and type of side walls
Lighting, heating and other accessories

Site and installation

Ground condition and foundation work
Electrical supply and cable route
Access from the road to the garden
Postcode and any delivery surcharge
Installation of the structure and side walls

Current 3m side-wall reference prices

Protect the sides that solve a real problem. There is no need to specify four walls when low sun, wind or overlooking affects only one elevation.

Motorised blind

£1,142

Adjustable shade and occasional privacy, with the option to retract fully.

Privacy shutter

£1,599

Screen neighbouring views while allowing light and air to pass through.

Sliding glass doors

£1,713

A brighter, more enclosed outdoor space with 10mm tempered glass.

Prices include VAT and refer to one 3m side-wall product. Pergola structure and installation are not included.

How to compare motorised pergola quotations

Compare the scope, not just the largest number at the bottom of the page.

Is VAT included?
Is the motorised roof included?
Is integrated lighting included?
Are side walls itemised?
Is delivery included for your postcode?

Is installation included?
Who checks the installation surface?
Is electrical work included?
What does the guarantee cover?
Who provides after-sales support?

Frequently asked questions

How much is a 3×3m motorised pergola?

The 3×3m POWER+ PRO example starts at £4,856 including VAT. Four sliding glass sides bring the illustrated configuration to £11,708, or £13,308 with the installation package shown.

How much is a 3×4m motorised pergola?

The 3×4m POWER+ example costs £4,006 including VAT. One 4m motorised blind brings the configuration to £5,376. The installed example is £6,376.

How much is a 4×6m motorised pergola?

The 4×6m POWER+ PRO example costs £10,927 including VAT. With one 4m and one 6m privacy shutter wall, it is £16,181. The installed configuration shown is £18,131.

Are groundwork and electrical work included?

No. Groundwork and electrical connection are excluded unless specifically listed in an individual written quotation.

Can a pergola be installed directly on grass?

No. A suitable level structural base will normally need to be prepared before installation.

Free initial garden assessment

Get a price built around your garden

Send one to three photographs, approximate width and depth, your postcode and the sides where privacy, wind or low sun matter most.

Send your garden details

Prices include VAT and are based on FlexPatio UK reference prices as of 1 September 2026. Prices and availability may change. Groundwork, electrical connection and location-based delivery surcharges are excluded unless specifically stated. Professional installation is subject to postcode, access and site conditions.
